Dry-type iron core reactor

Dry-type iron core shunt reactor

Overview

Execution standard

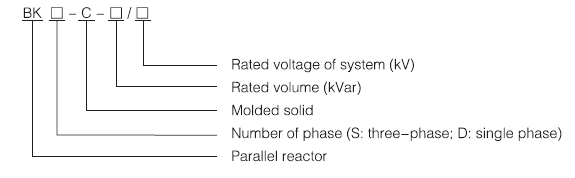

Model
Performance
Parameters
Appearance

- GB/T17211-1998 《Load Guidance of Dry Power Transformer》
- GB10229 IEC60076-6
Basic ordering data
- Rated volume;
- Rated voltage;
- Maximum operation voltage of parallel reactor;
- Rated current;
- Rated reaction;
- Cooling mode (AN or AF);
- Utilization conditions (indoor);
- According to the application of parallel reactor, other required performance data is marked in the contract.

echnical parameters of BKSC series of iron core parallel reactor
Model	Rated volume (kVar)	Rated voltage (kV)	Rated current (A)	Rated impedance (Ω)	Loss 75℃ (W)	Outline dime.						Weight (kg)
Model	Rated volume (kVar)	Rated voltage (kV)	Rated current (A)	Rated impedance (Ω)	Loss 75℃ (W)	a	b	c	d	e	f	Weight (kg)
BKSC-1500/10	1500	10	86.6	66.67	13600	1900	1030	1820	615	1720	480	4100
BKSC-4000/10	4000	10	173	30.25	19700	2600	1320	2300	825	2025	530	9300
BKSC-5000/10.5	5000	10.5	275	22.05	22000	2760	1320	2150	885	1960	640	11450
BKSC-6000/10	6000	10	346	16.67	25000	2880	1320	2210	925	2010	610	13600
BKSC-8000/10	8000	10	462	12.5	32000	3100	1320	2350	1000	2100	635	17100
BKSC-10000/10.5	10000	10.5	545	11.02	38000	3300	1600	2410	1075	2150	720	19000
BKSC-9000/20	9000	20	260	44.44	34100	3280	1600	2450	1060	2250	730	17900
BKSC-10000/35	10000	35	165	122.5	39700	3980	1600	2890	1280	2600	950	22000
BKDC-6667/35	6667	35√3	330	61.26	26700	3320	1600	2888	1190	2714	800	13800
BKDC-10000/35	10000	35√3	495	40.8	39100	3780	1600	3032	1360	2851	834	16500

Schematic diagram of appearance and installation of dry iron core parallel reactor

No.218, Wusong Road, Shanghai, China [sales headquarters] 200080 400-080-1921
F12, Shanghai Baokuang International BM Building
Address: No.666, Zhangwengmiao Road, Fengxian District, Shanghai Postal code:201400
Switchboard: 86-21-68866111 Fax:86-21-68860333
©2013 Shanghai Transformer Work Co., Ltd.
